Kyaw Stainless is a top-notch manufacturer and supplier located in Naypyidaw, Myanmar, specializing in high-quality Stainless Steel 317 Pipes. These pipes are celebrated for their exceptional resistance to corrosion, oxidation, and high-temperature scaling. Stainless Steel 317 is a molybdenum-rich austenitic alloy that provides enhanced strength and corrosion resistance compared to the 316-grade. At Kyaw Stainless, we take pride in producing each pipe with meticulous attention to detail, ensuring they undergo rigorous quality checks for durability, precise dimensions, and outstanding mechanical properties. Our 317 pipes are widely utilized in tough industrial settings where strength, performance, and chemical resistance are crucial.
Stainless Steel 317 Pipes are made up of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), which greatly improve their resistance to corrosion and pitting. With a tensile strength of about 515 MPa and a yield strength of around 205 MPa, these pipes offer remarkable durability and formability. The elongation rate of 35% ensures they are quite ductile, while the hardness averages 85 HRB. The molybdenum content enhances their resistance to acids like sulfuric and acetic acids, making these pipes perfect for high-stress and corrosive environments across various industrial applications.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 317 Pipes are made from Grade 317 austenitic stainless steel, composed of 18-20% Chromium, 11-15% Nickel, 3-4% Molybdenum, 2% Manganese, 1% Silicon, 0.03% Carbon, 0.045% Phosphorus, 0.03% Sulfur, and balance Iron, offering superior corrosion resistance and high strength. The mechanical properties include a tensile strength of 515 MPa, yield strength of 205 MPa, elongation of 35%, and hardness of 85 HRB, ensuring excellent durability and flexibility. The physical properties feature a density of 7.9 g/cm³, thermal conductivity of 16.2 W/m·K, and a melting point of 1400°C, making them ideal for harsh industrial environments.

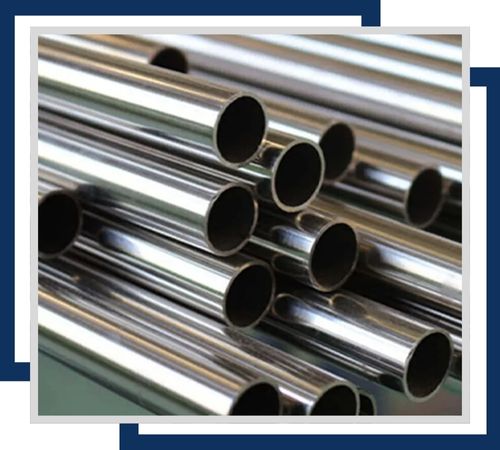

Stainless Steel 317 Square Pipes offer excellent corrosion resistance, high strength, and durability, making them ideal for structural, chemical, marine, and industrial applications in harsh environments.

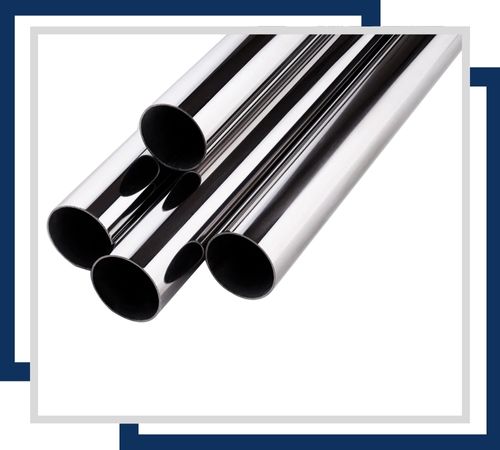

Cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.

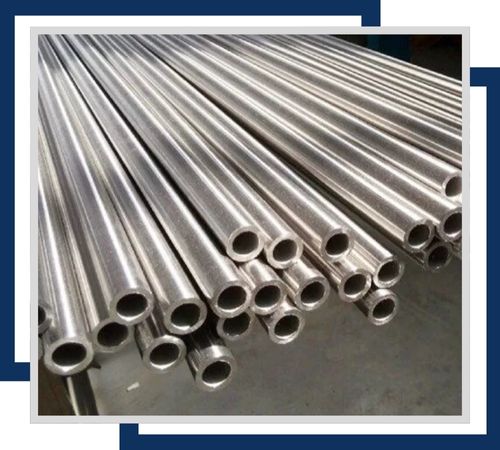

Joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes find extensive use in sectors such as chemical processing, petrochemical, pulp and paper, and marine engineering. Their impressive corrosion resistance makes them perfect for dealing with aggressive chemicals, acidic solutions, and chloride-laden fluids. These pipes are often found in heat exchangers, condensers, evaporators, and pressure vessels. They are also utilized in the pharmaceutical, textile, and food processing industries, where hygiene, durability, and contamination resistance are paramount. Thanks to their superior mechanical strength, weldability, and long-lasting service life, Stainless Steel 317 Pipes are a reliable choice for demanding applications.
