Kyaw Stainless, a reputable manufacturer and supplier located in Naypyidaw, Myanmar, focuses on crafting top-notch Stainless Steel 347/347H Forged Fittings that are built to perform exceptionally in tough industrial settings. With state-of-the-art manufacturing facilities and rigorous quality control measures, Kyaw Stainless ensures that their products offer outstanding durability, corrosion resistance, and precision. Their lineup of forged fittings—ranging from elbows and tees to couplings and unions—meets international standards and serves various industries, including petrochemical, power generation, and marine. Kyaw Stainless is dedicated to delivering dependable solutions that boost the safety and efficiency of piping systems.
The Stainless Steel 347/347H Forged Fittings are enhanced with niobium to improve their resistance to intergranular corrosion. This alloy primarily consists of chromium (17–19%), nickel (9–13%), along with small amounts of niobium and carbon. The Type 347H variant has a higher carbon content, which enhances its creep strength and stability at high temperatures. These fittings showcase impressive tensile strength (around 515 MPa), yield strength (205 MPa), and good elongation (about 40%). They maintain excellent mechanical properties even at elevated temperatures, ensuring reliable performance in thermal processing and oxidizing environments.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.
Stainless Steel 347/347H Forged Fittings are commonly utilized in industries that face high-temperature and corrosive conditions. They are perfect for applications in heat exchangers, boilers, exhaust manifolds, chemical processing plants, and refinery equipment. Their ability to resist oxidation and carbide precipitation makes them suitable for prolonged exposure to high temperatures. Additionally, these fittings find use in power generation, food processing, and pharmaceutical industries, where cleanliness and corrosion resistance are crucial. With their superior mechanical strength and thermal stability, they guarantee secure and leak-free connections in critical piping systems.

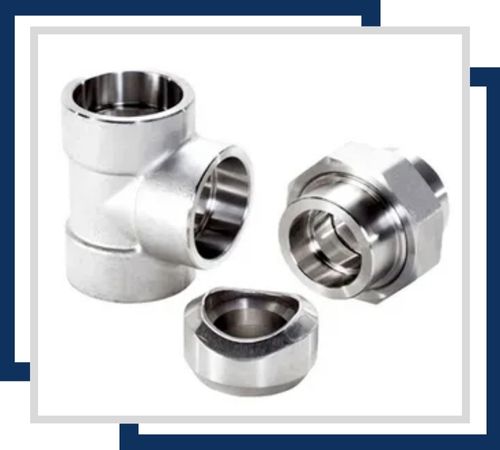

Highly resistant to intergranular corrosion, these fittings are designed for high-pressure applications. They provide a secure, leak-proof connection in sizes from 1/4″ to 4″ and various pressure ratings.

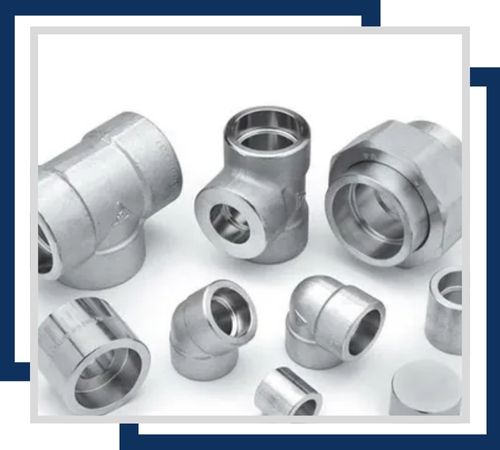

Exceptional resistance to oxidation and high-temperature environments, these fittings are available in sizes from 1/8″ to 4″ NPT. They are ideal for applications where high strength and durability are required.

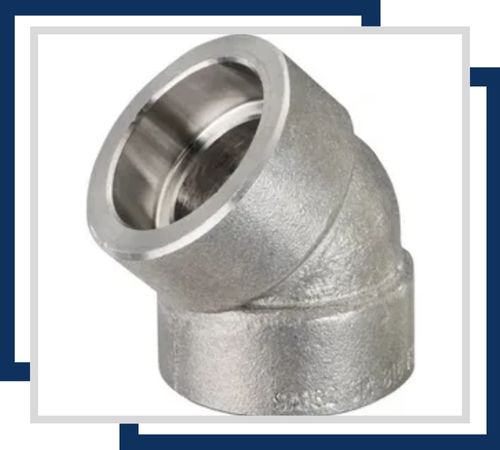

Corrosion and high temperatures, this elbow allows for smooth changes in pipe direction at a 45-degree angle. Sizes range from 1/2″ to 4″, accommodating various pipe dimensions.

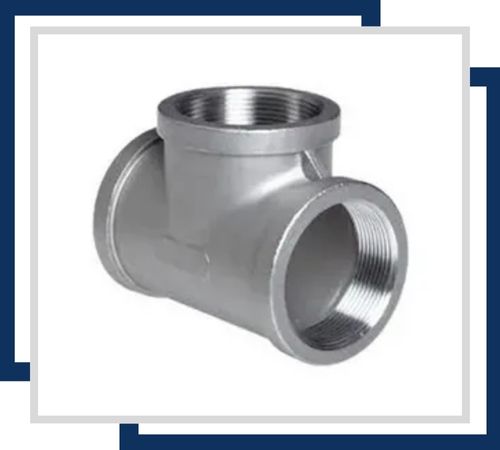

Excellent resistance to corrosion and high temperatures, this tee connects three sections of pipe, allowing for changes in direction. Available in sizes from 1/4″ to 4″ NPT.

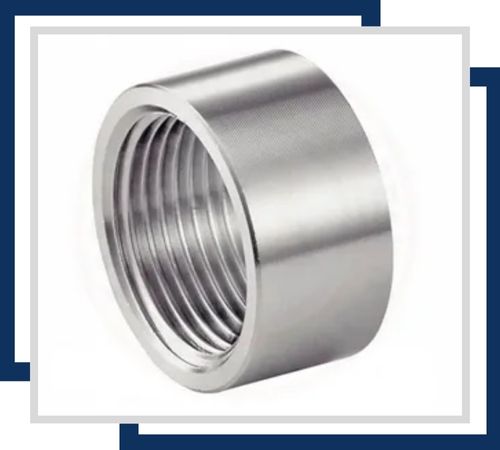

Strong corrosion resistance and suitability for high-temperature use, this coupling connects a pipe to a threaded fitting. Common sizes include 1/4″ to 2″ NPT.

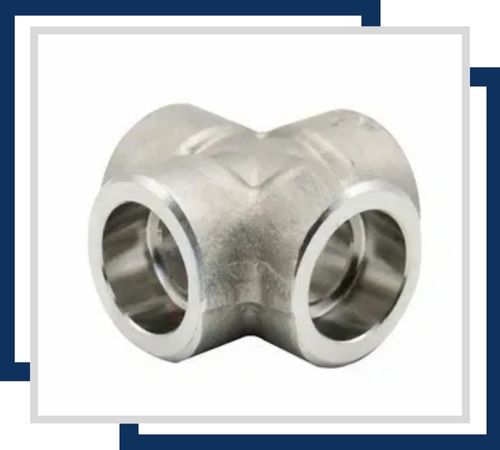

Its durability and resistance to corrosive environments, this cross-fitting enables four-way connections between pipes. Available in sizes from 1/2″ to 2″, it ensures robust and reliable performance.
Kyaw Stainless offers test certificates like Mill Test Certificates (MTC) according to EN 10204 3.1, adhering to global quality standards. The forged fittings are packed tightly in wooden crates, bubble wrap, or carton boxes to avoid transit damage. Through an organized logistics network, Kyaw Stainless provides timely and sure global delivery, addressing industrial needs with precision and efficiency.
