Home > Forged Fittings > Stainless Steel 904L Forged Fittings
Kyaw Stainless stands out as a leading manufacturer and supplier of Stainless Steel 904L Forged Fittings in Naypyidaw, Myanmar. They’re well-regarded for crafting high-quality forged fittings that adhere to international standards. With cutting-edge manufacturing facilities and a talented technical team, Kyaw Stainless guarantees precision, durability, and exceptional corrosion resistance in every product they create. Their 904L forged fittings are specifically designed to thrive in high-pressure and corrosive environments, delivering impressive mechanical performance and a long service life. As a top player in the stainless steel 904L forged fittings market in Naypyidaw, Kyaw Stainless is committed to providing reliable and cost-effective solutions for various industrial sectors throughout Myanmar.
The Stainless Steel 904L Forged Fittings produced by Kyaw Stainless in Naypyidaw are crafted from a high-alloy austenitic stainless steel blend that includes chromium, nickel, molybdenum, and copper. This special composition offers remarkable resistance to strong acids, pitting, and crevice corrosion. These fittings boast excellent mechanical properties, including high tensile strength, superior toughness, and outstanding weldability. Thanks to their low carbon content, 904L stainless steel minimizes carbide precipitation, ensuring structural integrity even at elevated temperatures. Kyaw Stainless maintains rigorous quality control and precision machining to deliver reliable and long-lasting forged fittings for critical industrial applications.
| Standards | ASTM B649 / ASME SB649 |
| Specifications | ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | NPS 1/8″- 4″ (DN 6~100) |
| Rating Pressure | Threaded End – 2000/3000/6000 LBS. Socket weld End – 3000/6000/9000 LBS. |
| Type | Socket Weld, Screwed, BSP Threaded & NPT Threaded |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 904L | min. | – | – | – | – | – | 19.0 | 4.00 – 5.00 | 23.00 | – |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 28.00 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 75 | – |
Contact us to get a quick quote for your requirement.
Stainless Steel 904L Forged Fittings are employed in highly corrosive conditions like chemical and pharmaceutical processes, where contact with strong acids is frequent. They are used extensively in marine and offshore equipment, desalination plants, and heat exchangers owing to their high resistance to seawater corrosion. These fittings are also used in refineries for oil and gas, paper and pulp mills, and power plants where high-temperature strength and durability are needed. Their excellent mechanical and corrosion-resistant properties qualify them for use in critical piping systems in many industrial applications.

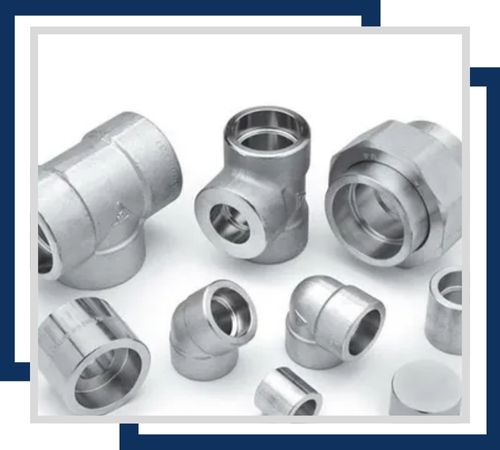

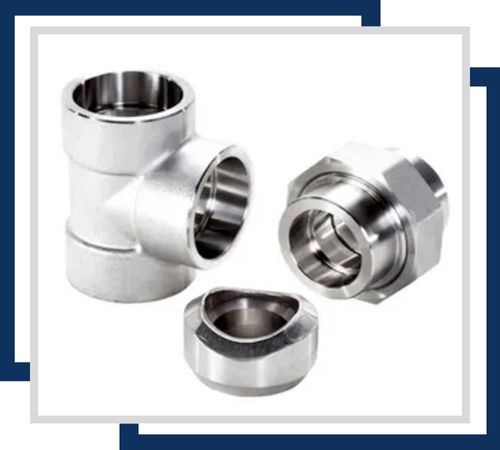

These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.
Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

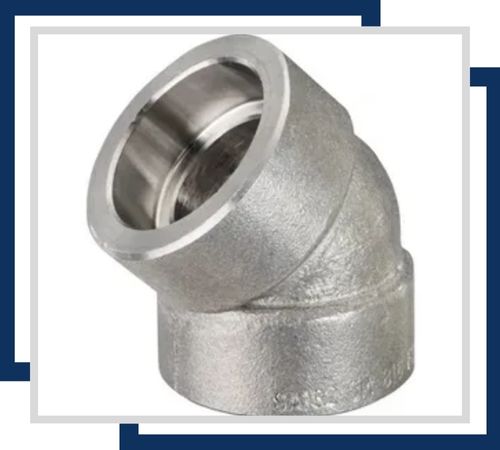

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

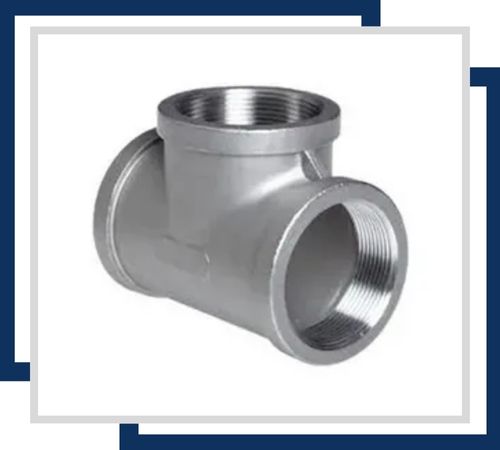

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

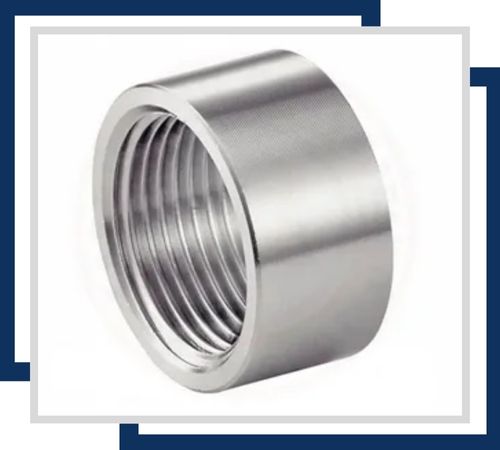

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

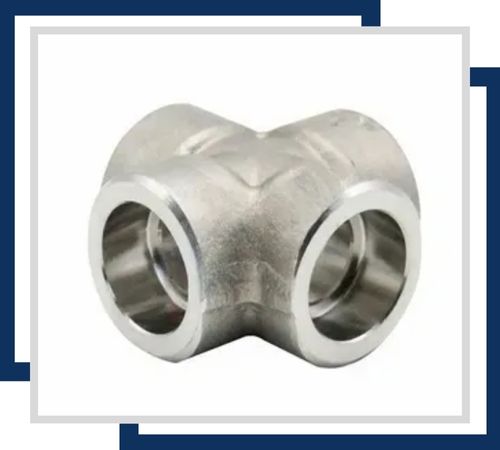

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
As the premier manufacturer and supplier of Stainless Steel 904L Forged Fittings in Naypyidaw, Kyaw Stainless provides products that are widely utilized in industries like chemical processing, oil and gas, power generation, marine, and pharmaceuticals. Their 904L forged fittings are perfect for connecting pipes and components in systems that encounter corrosive fluids, high pressure, and extreme conditions. You’ll find them commonly used in refineries, heat exchangers, desalination plants, and offshore platforms. With their superior corrosion resistance and durability, these fittings ensure a leak-proof performance that you can count on.
