AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER316/316H MIG & TIG Filler Welding Wire & Rod

AWS/ASME 5.14 ER316/316H MIG & TIG Filler Wire Manufacturer in Naypyidaw, SFA A5.9 ER316/316H MIG & TIG Filler Rod Supplier in Bago, AWS/ASME ER316/316H Welding Mig & Tig Filler Wire Exporter in Yangon, UNS S31680 Mig and Tig Filler Rod Trader in London, AWS ER316/316H Mig & Tig Filler Metal Rod & Wire Mandalay, AWS Class ER316/316H Metal Inert Gas (MIG) Welding London

The AWS Class ER316/316H filler wires and rods are produced in line with the American Welding Society (AWS) A5.9 / ASME SFA 5.9 specifications for stainless steel solid and rod consumables, making them suitable for both MIG (GMAW) and TIG (GTAW) welding processes. These alloys are specifically designed for austenitic stainless steels that contain molybdenum (like 316, 316L, 316H), where enhanced corrosion resistance (particularly against pitting and crevice corrosion) is essential, along with robust weld-metal integrity. The “H” variant (ER316H) has a higher carbon content and is specially formulated for high-temperature applications, creep resistance, and dynamic load scenarios.

AWS Class A5.9 ER316/316H MIG & TIG Welding Filler Rod Manufacturer in Naypyidaw, AWS Class ER316/316H MIG & TIG Filler Metal Stockist in Bago, ER316/316H MIG & TIG Filler Rods London, UNS S31680 MIG & TIG Filler Wire Stockist Mandalay, AWS Class ER316/316H Tungsten Inert Gas (TIG) Welding Rod Manchester

* Carbon: ≤ 0.03 % (ER316/316L) and ~0.04-0.08 % (ER316H) ([Weld Wire][1]) * Chromium: 18.0-20.0 % ([Weld Wire][2]) * Nickel: 11.0-14.0 % ([Weld Wire][2]) * Molybdenum: 2.0-3.0 % ([Welding Material Sales][3]) * Manganese: 1.0-2.5 % ([Raajratna Electrodes][4]) * Silicon: 0.30-0.65 % ([Hindustan Inox][5])

AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER316/316H
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER316/316H MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S	Cu
0.03	18.0-20.0	11.0-14.0	2.0-3.0	1.0-2.5	0.30-0.65	0.03	0.03	0.75

AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Yield, kpsi:	80
Tensile Strength, kpsi:	55
Elongation%, min:	40

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod from Kyaw Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod

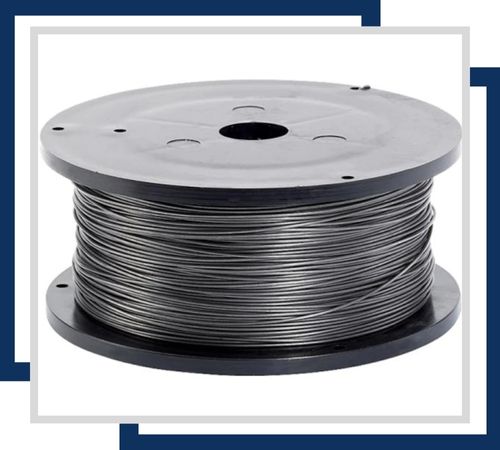

Stainless Steel ER316/316H MIG Filler Wire

Excellent corrosion resistance and strength, ideal for welding stainless steels in chemical, petrochemical, and marine applications, with high durability in harsh environments.

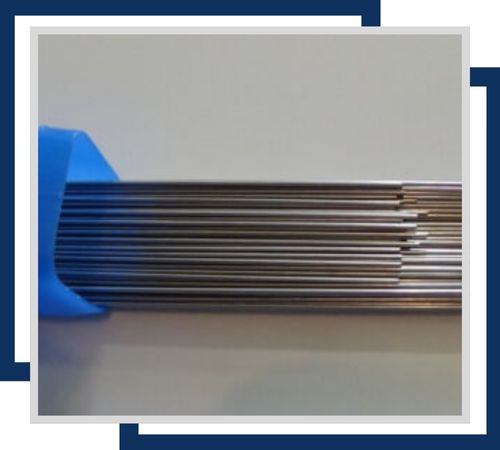

Stainless Steel ER316/316H TIG Filler Wire

Superior corrosion resistance and strength for precise welding of stainless steels, suitable for high-temperature environments in industries like chemical processing and aerospace.

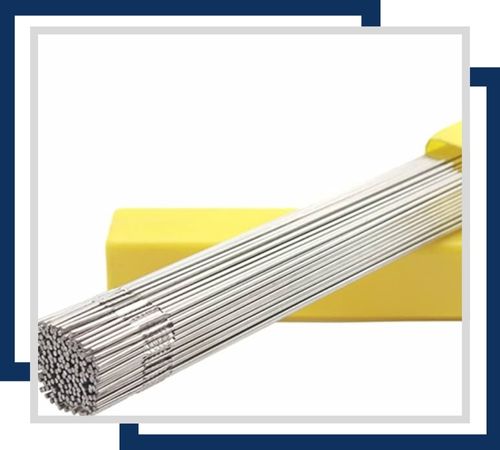

Stainless Steel ER316/316H TIG Filler Rod

Excellent resistance to corrosion and high temperatures, ideal for welding and repairing stainless steel components in demanding applications, including chemical and marine industries.

AWS Class ER312 MIG and TIG filler wire and rod find extensive applications in heavy machinery, construction, automotive, and power generation industries. They are suited for welding tool steels, cast steels, and joining similar metals like carbon and stainless steels. The fillers are also applied for overlay welding, restoration of worn parts, and the fabrication of high-strength structures needing excellent toughness. Their superior crack resistance and mechanical properties make them a requirement for high–stress and dynamic load applications, providing solid and durable welds.

Stainless Steel Industrial ER316/316H MIG / TIG Filler Wire Price List in Monywa, Aws Class ER316/316H MIG /TIG Filler Welding Wire Manchester, Stainless Steel ER316/316H Mig & Tig Filler Wire Supplier in Naypyidaw, Myanmar, SS ER316/316H MIG & TIG Filler Metal Distributor in Monywa, AWS Class ER316/316H MIG & TIG Filler Rod Exporters Bago, UNS S31680 AWS Class ER316/316H MIG and TIG Filler Welding Wire and Rod Monywa

AWS Class ER316/316H MIG and TIG Filler Welding Wires and Rods Uses

* Tensile strength: around 80 ksi (~550-620 MPa) or higher, depending on the condition. ([Welding Material Sales][3]) * Yield strength: ~55 ksi (~380-400 MPa) or more. ([Welding Material Sales]
