Kyaw Stainless, a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializes in high-quality Stainless Steel 304 Tubing. These tubes are celebrated for their remarkable corrosion resistance, durability, and impressive strength. Crafted from top-notch raw materials and utilizing cutting-edge production techniques, they adhere to international quality and performance standards. Stainless Steel 304, the most commonly used austenitic stainless steel, offers exceptional resistance to oxidation and corrosion across a variety of environments. Kyaw Stainless provides 304 tubing in an array of sizes, shapes, and finishes, making it perfect for industries like chemical processing, food production, marine engineering, and pharmaceuticals.
Stainless Steel 304 Tubing consists primarily of chromium (18–20%) and nickel (8–12%), with minor elements including carbon (≤0.08%), manganese (≤2%), silicon (≤1%), phosphorus (≤0.045%), and sulfur (≤0.03%). This well-balanced composition guarantees excellent corrosion resistance and good weldability. In terms of mechanical properties, 304 tubing boasts a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. It showcases outstanding toughness, ductility, and formability, retaining its strength and structural integrity even in cryogenic and high-temperature conditions.
Tube Range : 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A213 / ASTM SA213
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| N | – |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 304 Tubing is utilized extensively in corrosion-resistant industries that demand strength and durability. It is used in chemical processing, pharmaceuticals, food and beverages, and marine applications for conveying fluids, gases, and chemicals in a safe manner. It is utilized in pipelines, heat exchangers, and condensers in the oil and gas industry due to its resistance to pressure and high temperatures. It is also used in the automotive, aerospace, and construction sectors for structural reinforcement, exhaust systems, and architectural structures. Its superior weldability and resistance to oxidation make it perfect for harsh environments.

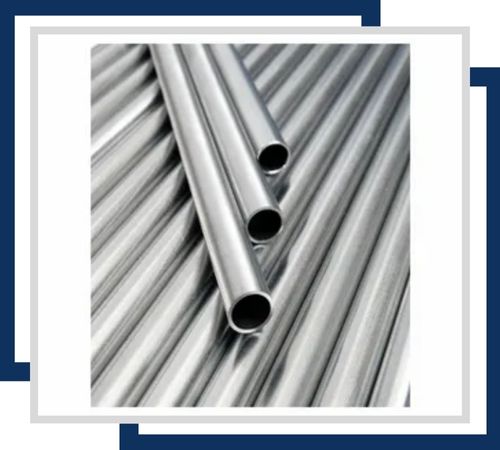

This tubing is available in a variety of sizes and diameters, typically ranging from 1/8″ to 12″ OD. It offers excellent corrosion resistance, particularly against oxidative and corrosive environments. Ideal for high-pressure applications due to its uniform strength and integrity.

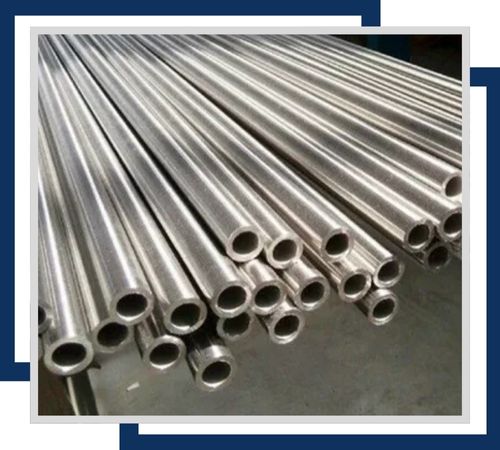

Commonly found in sizes from 1/4″ to 8″ OD, this tubing is produced by welding a seam along its length. It provides good corrosion resistance and is often used in structural and decorative applications. Less uniform in strength compared to seamless tubing but cost-effective.

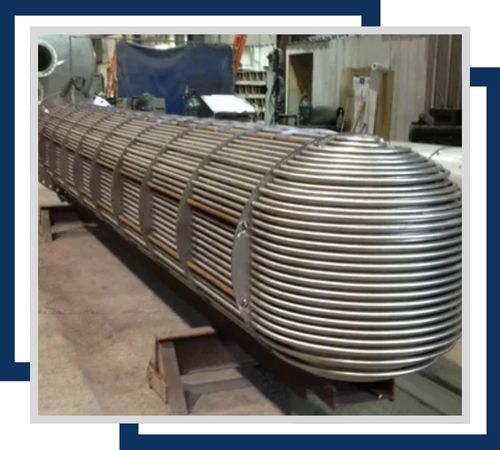

These tubes are designed for thermal exchange processes and come in sizes ranging from 1/2″ to 4″ OD. They offer superior resistance to heat and corrosion, making them ideal for use in various heating and cooling systems.

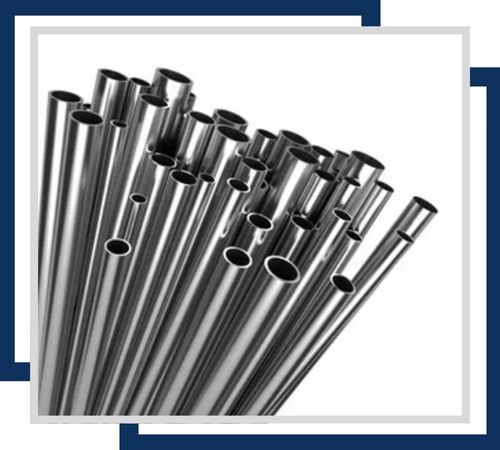

Typically available in sizes from 1/8″ to 2″ OD, this tubing is used for precision instrumentation. It features excellent resistance to corrosion and ensures accurate readings in a variety of monitoring and control applications.

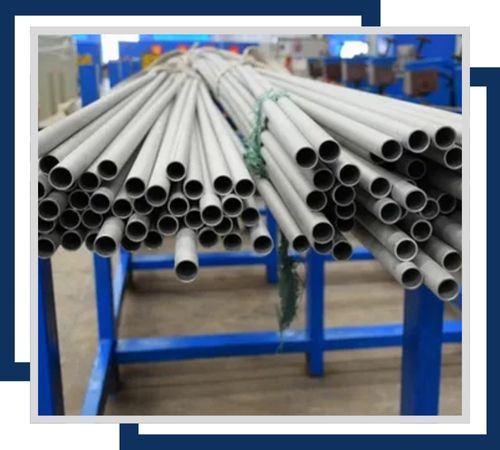

Sized from 1″ to 6″ OD, these tubes are specifically designed for boiler systems. They provide high resistance to heat and corrosion, ensuring durability and reliability under high-pressure and high-temperature conditions.

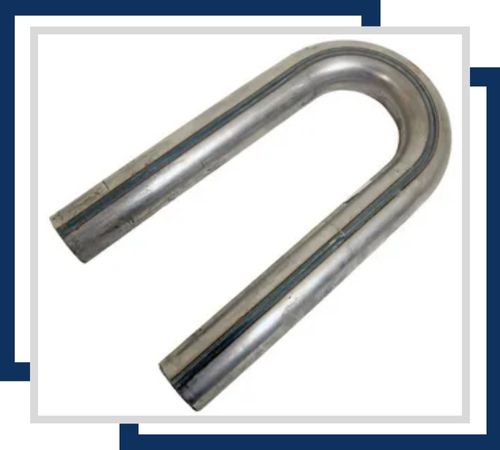

These U-shaped tubes are often used in heat exchangers and come in sizes from 1/2″ to 3″ OD. They are highly resistant to corrosion and thermal stress, making them ideal for applications requiring efficient heat transfer.
Available in sizes from 1/2″ to 3″ OD, these tubes are used in condenser systems. They provide excellent corrosion resistance and durability against the harsh conditions of cooling and condensation processes.

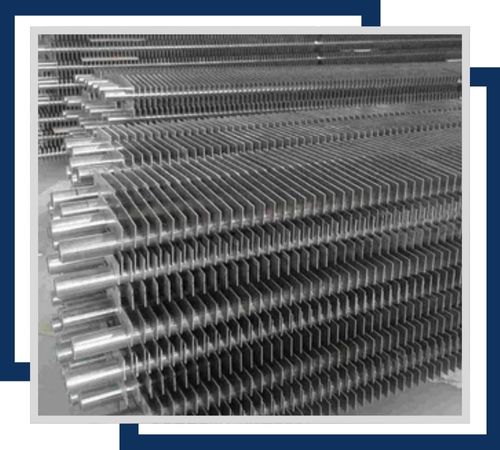

Typically found in sizes from 1″ to 4″ OD, fin tubes are used in heat exchangers and radiators. They offer strong corrosion resistance and enhanced heat transfer efficiency due to their finned surface design.
**Stainless Steel 304 Tubing** is widely utilized in industries that require durability, cleanliness, and resistance to corrosion. It’s particularly well-suited for chemical and petrochemical processing, food and beverage sectors, water treatment facilities, and marine applications. These tubes are also commonly found in heat exchangers, condensers, instrumentation, and structural uses. Thanks to its smooth surface finish and hygienic characteristics, 304 tubing is ideal for pharmaceutical and sanitary systems. With its long-lasting performance, low maintenance needs, and high versatility, Stainless Steel 304 Tubing continues to be a top choice in various applications.
