Kyaw Stainless is a reputable manufacturer and supplier located in Naypyidaw, Myanmar. They specialize in high-quality Stainless Steel 304H Tubing, which is crafted for outstanding strength, corrosion resistance, and durability even at high temperatures. These tubes are produced using cutting-edge technology and rigorous quality control measures to guarantee precise dimensions and top-notch performance. Kyaw Stainless’s Stainless Steel 304H Tubing is perfect for high-temperature and high-pressure applications. Thanks to its higher carbon content, this grade boasts enhanced tensile and creep strength, making it a go-to choice for industries like petrochemical, power generation, heat exchangers, and boilers.
The composition of Stainless Steel 304H Tubing includes about 18–20% chromium, 8–11% nickel, and a higher carbon content that ranges from 0.04–0.10%. It also contains trace amounts of manganese, silicon, phosphorus, and sulfur, with iron making up the rest. The elevated carbon level contributes to its superior mechanical strength and oxidation resistance at high temperatures. These tubes have a tensile strength of around 515 MPa and a yield strength of approximately 205 MPa, along with excellent toughness, weldability, and resistance to scaling up to 870°C.
| Alloy 304H Standards | Stainless Steel 304H |
|---|---|
| ASTM A213 Stainless Steel Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| ASTM A249 TP 304H Stainless Steel Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASTM A269 TP 304H Stainless Steel Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| ASME SA213 TP 304H Stainless Steel Tube wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| SS 304H Length | Single Random, Double Random, Standard & Cut length Tube |
| UNS S30409 Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| ASTM A213 Gr. TP304H Form | ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| ASTM A269 TP 304H Stainless Steel Type | Seamless, ERW, EFW, Welded, Fabricated Tube |
| ASTM A213 Stainless Steel End | Plain End, Beveled End, Treaded Tube |
| ASME SA213 SS 304H Marking | All 304h Stainless Steel Tube are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| ASME SA213TP 304H Stainless Steel Application | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| 304H SS Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Stainless Steel 304H Specialize in | Stainless Steel 304H Capillary Tube & Other Odd Size Alloy 304H Heat Exchanger & Condenser Tube |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304H | min. | 0.04 | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304H | 515 | 205 | 40 | 92 | 201 |
Contact us to get a quick quote for your requirement.
Stainless Steel 304H Tube is commonly applied in corrosive and high-temperature conditions based on its high strength and oxidation resistance. It is used massively in heat exchangers, pressure vessels, superheaters, and boilers in petrochemical, chemical processing, and power generation industries. It finds application in refinery piping systems, food processing equipment, and pharmaceutical equipment, where hygiene and longevity are important considerations. Its structural uses range from architectural structures, exhaust systems, and aerospace parts to providing reliability in harsh environments. Its high-temperature strength property makes it best suited for use in furnace components and heat treating equipment.

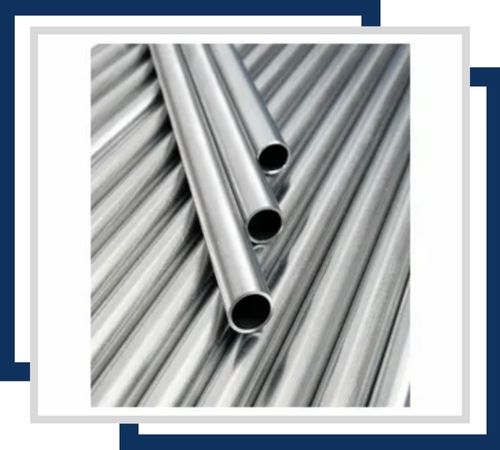

Superior corrosion resistance, ideal for high-pressure applications. Sizes typically range from 1/8″ to 24″ in diameter. They provide excellent durability and are used in industries requiring precise tolerances.

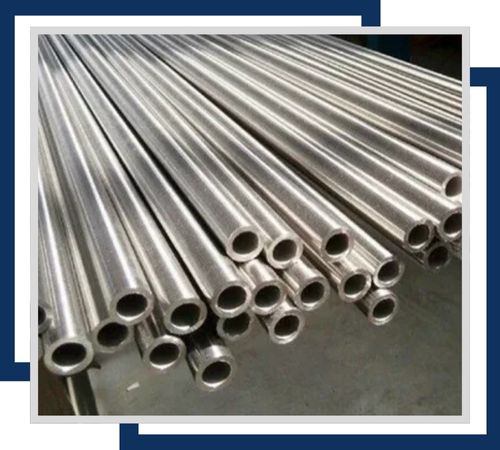

Excellent corrosion resistance, this tubing is available in sizes from 1/8″ to 24″. It’s cost-effective for less critical applications and offers good strength and flexibility for various uses.
Excel in corrosion resistance and thermal conductivity. Common sizes range from 1/2″ to 1-1/2″ in diameter, designed for efficient heat transfer in industrial applications.

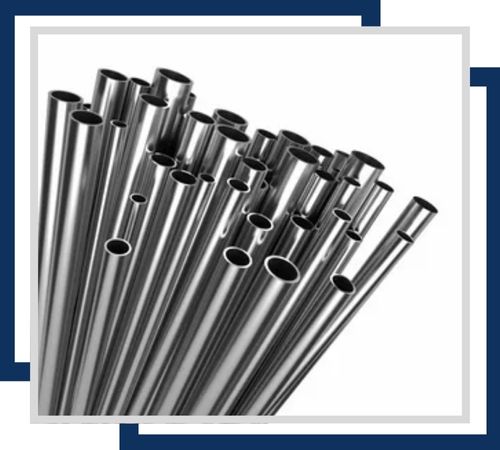

High corrosion resistance, these tubes are typically available in sizes from 1/16″ to 2″. They are crucial for precise instrumentation and control systems in various industries.

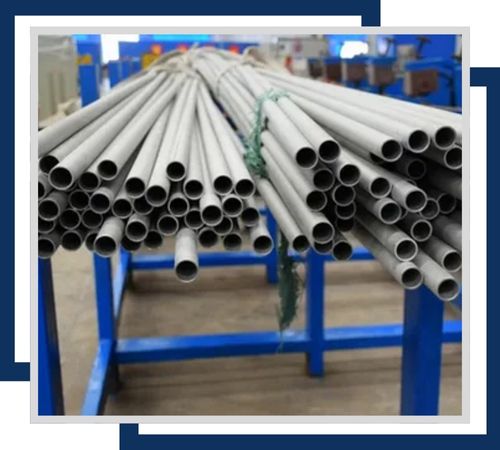

Corrosion-resistant tubes come in sizes typically from 1/2″ to 5″ in diameter. They are designed to withstand high temperatures and pressures in boiler systems.

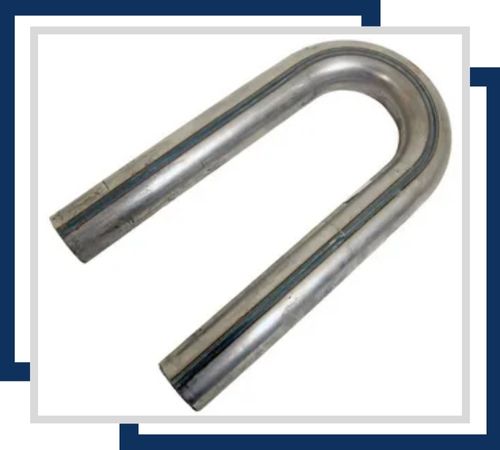

High corrosion resistance, these U-shaped tubes are available in sizes from 1/2″ to 1-1/2″. They are commonly used in heat exchangers and condensers for efficient thermal management.

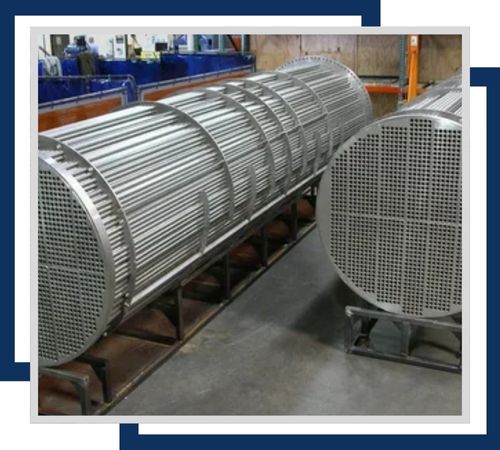

Superior corrosion resistance, this tubing ranges from 3/8″ to 1-1/4″ in diameter. It’s used in condensers to efficiently transfer heat and condense steam into water.

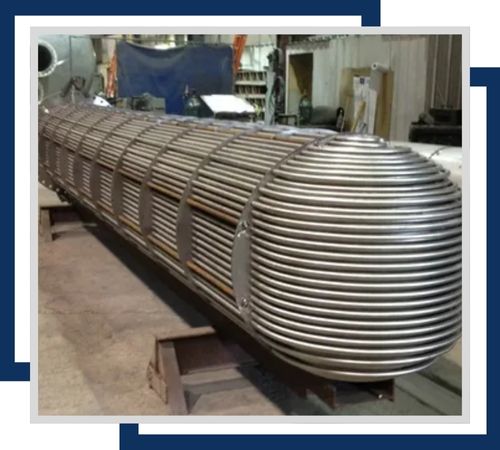

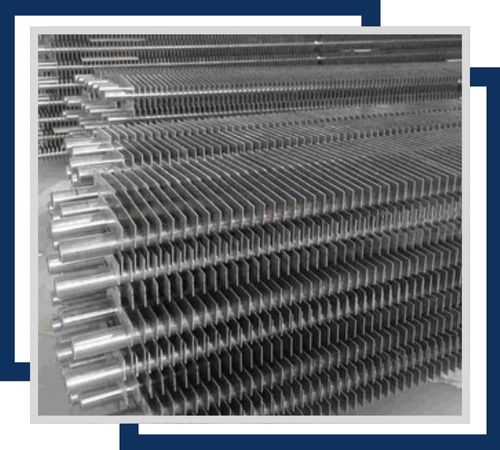

Excellent corrosion resistance and are available in sizes typically from 1/2″ to 1-1/2″. They are used in applications requiring enhanced heat transfer efficiency due to their extended surface area.
Stainless Steel 304H Tubing finds extensive use in heat exchangers, boilers, superheater tubes, power plants, and the chemical processing sector. Its ability to maintain structural integrity and strength under prolonged exposure to high temperatures makes it ideal for thermal and pressure-related applications. Additionally, it’s utilized in refinery equipment, condensers, and piping systems where resistance to oxidation and creep is crucial. With its remarkable mechanical properties, weldability, and corrosion resistance, Stainless Steel 304H Tubing ensures long-lasting performance and reliability in challenging industrial settings.
