Home > Sheet and Plates > SS 422 Sheet and Plates
Kyaw Stainless is a reputable manufacturer and supplier located in Naypyidaw, Myanmar, known for its top-notch SS 422 Sheets and Plates. We pride ourselves on our dedication to precision engineering and durability, ensuring that our products meet both national and international standards. Our SS 422 Sheets and Plates are celebrated for their outstanding performance, impressive corrosion resistance, and strength even in high-stress situations. As a prominent player in the stainless steel manufacturing industry, we offer tailored solutions to cater to various industrial needs, guaranteeing reliability, longevity, and customer satisfaction throughout Myanmar’s construction, engineering, and manufacturing sectors.
SS 422 Sheets and Plates are martensitic stainless steels primarily made up of iron, chromium (12–14%), carbon (0.15–0.25%), along with trace amounts of manganese, silicon, phosphorus, and sulfur. This alloy is known for its remarkable strength, hardness, and moderate resistance to corrosion. With a tensile strength ranging from 620–850 MPa, it also boasts good toughness and wear resistance, making it perfect for heat-treated applications. SS 422 shows excellent resistance to scaling at high temperatures and maintains its structural integrity, making it ideal for demanding mechanical and industrial settings that require both strength and durability.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

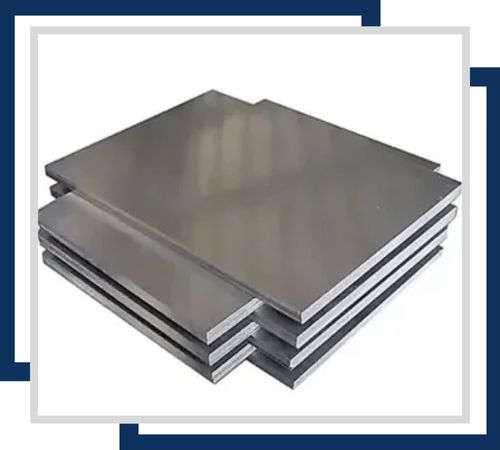

Strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

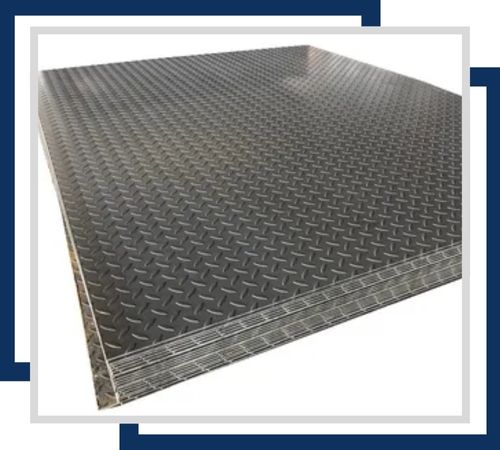

Highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.

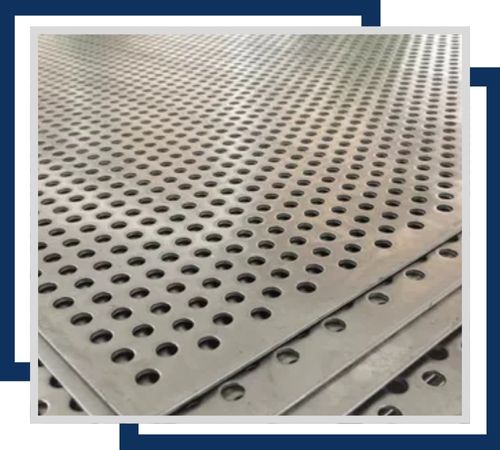

Designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

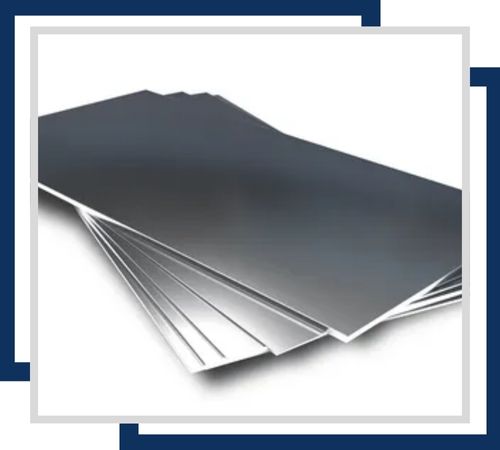

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.
Most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
At Kyaw Stainless, our SS 422 Sheets and Plates find extensive use in industries where high strength and moderate corrosion resistance are crucial. You’ll commonly see them in turbine blades, valves, pumps, and shafts within the power generation and petrochemical sectors. They’re also utilized in cutlery, surgical instruments, and components that face elevated temperatures. In the engineering and manufacturing fields across Naypyidaw and Myanmar, SS 422 is favored for its machinability and its ability to retain hardness after heat treatment, ensuring a long service life and reliable performance under high-pressure conditions.
SS 422 Sheet and Plates are accompanied by test certificates like Mill Test Certificates (MTC) according to EN 10204 3.1 or 3.2, third-party inspection reports, and other quality assurance documents to guarantee adherence to industry standards. They are safely packaged in wooden crates, pallets, or protective wrapping to avoid damage during transportation. Reliable shipping facilities are provided for both domestic and overseas markets, guaranteeing prompt and secure delivery.
