Kyaw Stainless has become a trusted name for quality metal in Naypyidaw, proudly serving as a dedicated manufacturer and supplier for a wide range of projects. We specialize in providing top-grade Stainless Steel 202 sheets and plates, offering a reliable and cost-effective solution for both industrial and commercial needs. Our commitment lies in delivering materials that combine durability with excellent value, ensuring your constructions and creations are built to last with a supplier you can count on for consistent quality and dependable service.
Stainless Steel 202 is an austenitic grade known for its balanced composition, primarily chromium, manganese, and nickel, which gives it a good mix of strength and corrosion resistance. This alloy is engineered to perform well in various environments, offering solid mechanical properties like impressive tensile strength and excellent ductility. It can be easily fabricated and welded, making it a practical choice for manufacturers who need a material that is both tough enough for structural demands and formable for complex designs.
| Item | 202 Stainless Steel Plate (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Range | 0.5 mm To 150mm |
| Material | 202 SS Plates / Sheets / Coil |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 0.1 to 200 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
| Finish | Hot rolled sheet (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Content (%) |
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 43620 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
Contact us to get a quick quote for your requirement.

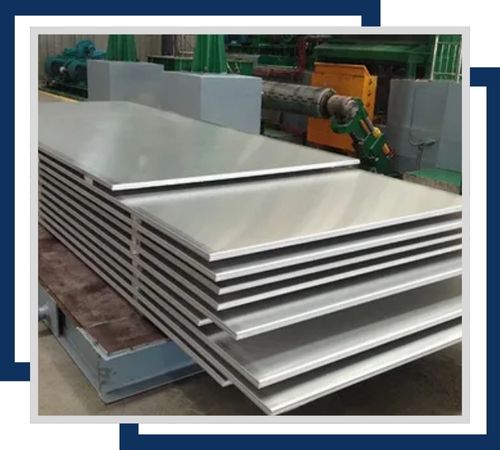

Available in thickness ranges starting from 4mm up to 150mm. The plates are rolled at high temperatures to give them more malleability and to easily form their shape. The product has good resistance to corrosion and is applied in durability and strength-based applications.

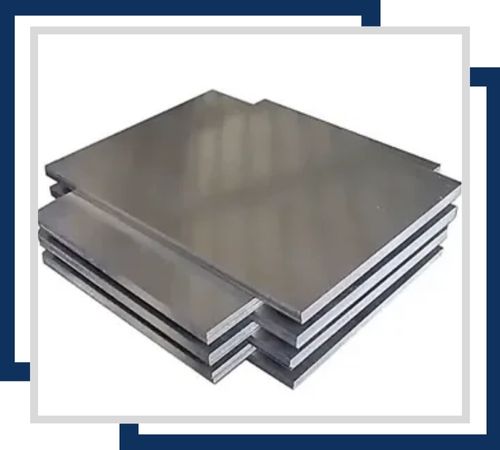

Processed by cold rolling of steel. These are a smoother and closer tolerance plate in comparison with the hot rolled ones. Good resistance to corrosion qualifies them as highly suitable for high precision requirements as well as providing an aesthetic-looking surface finish for applications.

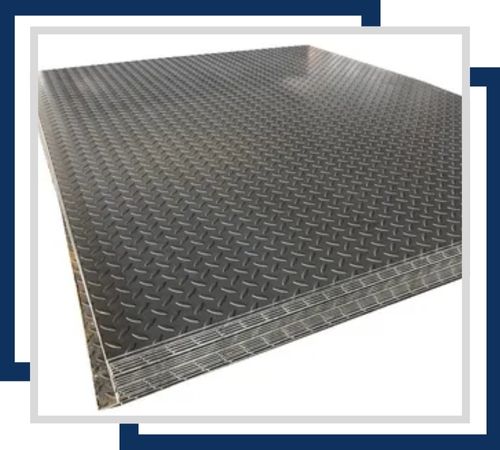

Offered in various thicknesses, from 1.2mm to 8mm. These sheets have a raised pattern, which is slip-resistant and suitable for flooring or walkways. Their inherent corrosion resistance will prove to be long-lasting even in adverse environments.

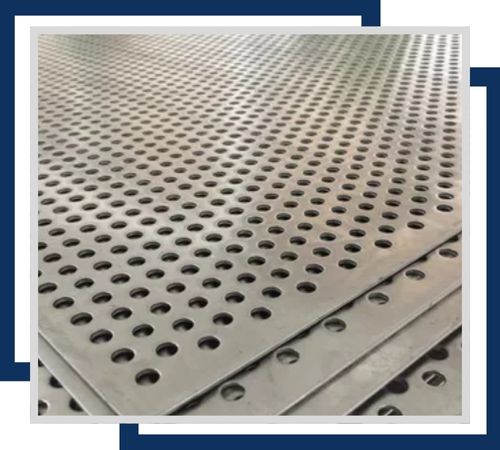

Manufactured in thicknesses ranging from 0.3mm to 8mm and are available in various hole patterns and sizes. These sheets are used for filtration, ventilation, and decorative purposes because of their excellent strength and corrosion resistance. The perforations reduce weight while maintaining structural integrity.

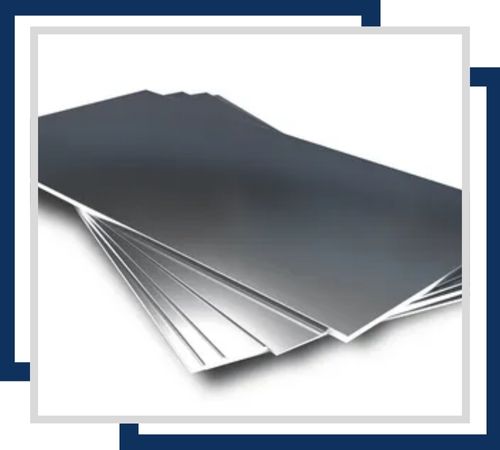

Available in thicknesses from 0.05mm to 3mm. These sheets are precision-engineered for alignment and leveling applications. Excellent corrosion resistance ensures reliable performance in various industrial environments.

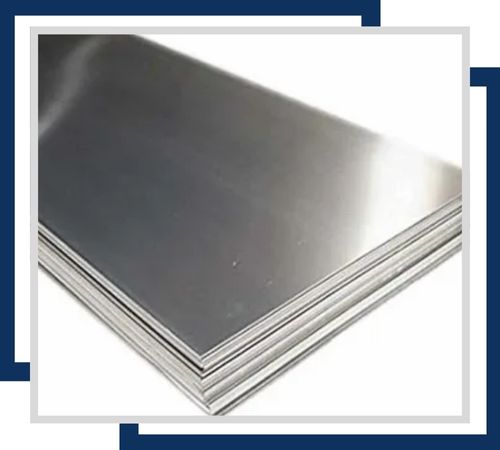

Good corrosion resistance, with excellent reflective appearance. Range from 0.5 to 12 mm thick and are up to 1500 mm x 3000 mm. Use for visual or architectural ends.
Stainless Steel 202 Sheets and Plates find extensive application in industries where they need to be durable, corrosion resistant, and economical. They are used extensively in construction applications such as roofing, wall cladding, and structural members. The automotive sector applies them for car body panels, cosmetics trim, and exhaust systems. They also find application in making kitchen appliances, food processing machinery, storage tanks, railway coaches, and industrial equipment. Their high formability and weldability qualify them to be used in HVAC applications, furniture, and marine. With their low-cost nature as substitutes for 304 and 316 grades, they provide stable performance in diverse commercial and industrial processes.
The versatility of Stainless Steel 202 sheets and plates makes them ideal for a host of applications. You’ll often find them used in kitchen equipment like sinks and countertops, as well as in architectural elements such as trim, handrails, and decorative panels. They are also widely employed in the automotive industry for specific components and in manufacturing various industrial equipment. Its excellent balance of performance and affordability ensures it’s a go-to material for projects that require lasting quality without a premium price tag.
