Kyaw Stainless, a reputable manufacturer and supplier located in Naypyidaw, Myanmar, specializes in high-quality Stainless Steel 904L Sheets and Plates that are built to perform exceptionally in tough environments. With a strong focus on excellence and innovation, this company delivers products that adhere to international standards for durability, precision, and resistance to corrosion. The Stainless Steel 904L Sheets and Plates from Kyaw Stainless are particularly valued for their remarkable ability to withstand harsh chemicals, extreme temperatures, and corrosion from seawater, making them a top choice in various industries such as chemical, marine, and pharmaceuticals.
These Stainless Steel 904L Sheets and Plates are crafted with a blend of high levels of chromium, nickel, molybdenum, and copper, while keeping carbon content low. This unique alloy offers outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking. On the mechanical side, it boasts excellent toughness, a yield strength of about 220 MPa, tensile strength reaching up to 490 MPa, and good elongation properties. Its non-magnetic quality and high formability make it perfect for critical applications that require both strength and resistance to corrosion.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

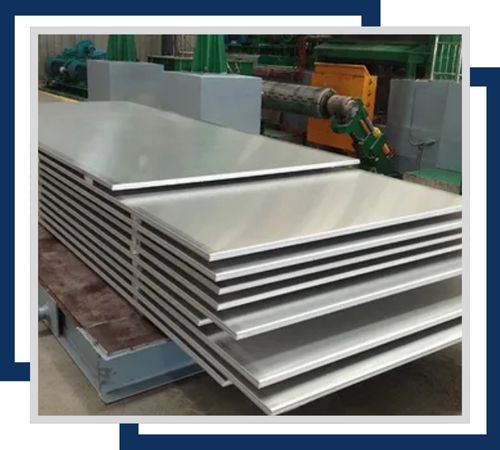

Excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

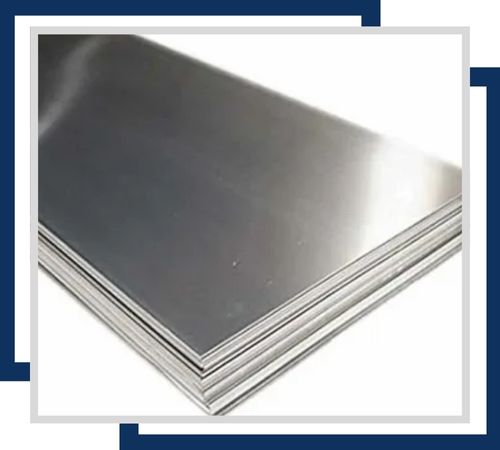

Alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

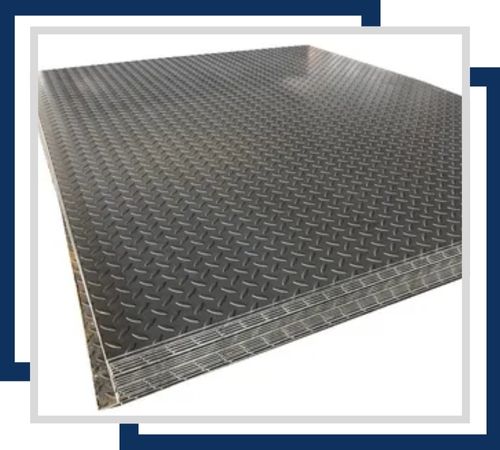

Patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

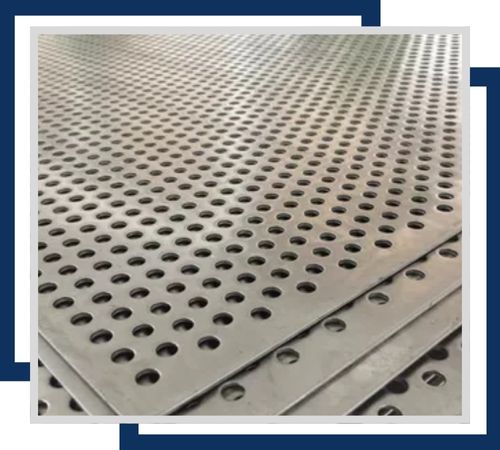

Corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

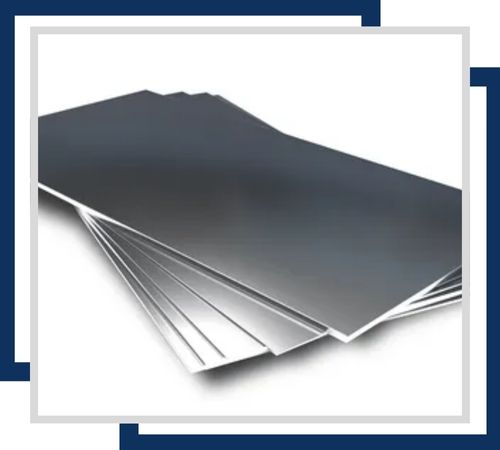

Excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

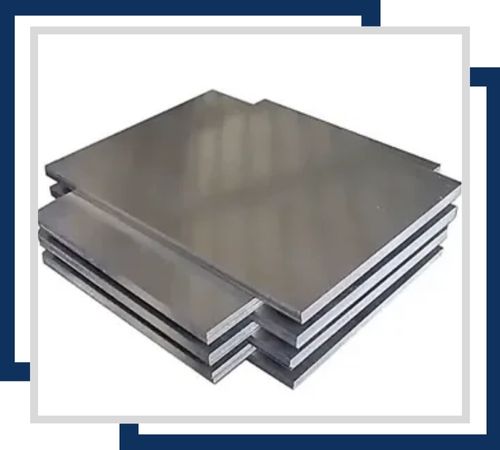

Excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Stainless Steel 904L Plates and Sheets find extensive application in superior corrosion-resistant industries like offshore, marine, and chemical processing. They find prime importance in equipment used in power plants, heat exchangers, and pharmaceutical processing where resistance against sulfuric, phosphoric, and acetic acids is of the utmost importance. They also find application in seawater desalination, pulp and paper, and food processing plants because of their non-reactive properties and strength. Their excellent mechanical properties, resistance to chloride stress corrosion cracking, and extended service life make them highly sought after for challenging industrial conditions.
You’ll find Stainless Steel 904L Sheets and Plates commonly used in chemical processing plants, heat exchangers, and marine settings due to their exceptional resistance to sulfuric acid and chloride attacks. They’re also essential in pharmaceutical equipment, oil and gas refineries, and the pulp and paper industries. In the food and beverage sector, these sheets and plates guarantee hygiene and durability even under extreme conditions. Their excellent weldability and smooth surface finish make them ideal for architectural, decorative, and industrial applications where both functionality and aesthetics are key.
