Kyaw Stainless is a reputable manufacturer and supplier located in Naypyidaw, Myanmar, known for its high-quality Stainless Steel 436 Sheets and Plates. With a strong dedication to excellence, the company offers durable, corrosion-resistant products that meet international standards. These Stainless Steel 436 Sheets and Plates are crafted using cutting-edge technology to ensure they have superior strength, a great surface finish, and precise dimensions. They’re perfect for applications that need enhanced resistance to oxidation, scaling, and wear. Kyaw Stainless is all about providing cost-effective and reliable stainless steel solutions that serve industrial, architectural, and engineering needs across various sectors.
The Stainless Steel 436 Sheets and Plates primarily consist of iron, chromium (16–18%), and molybdenum, featuring low carbon content and small amounts of titanium for stabilization. This ferritic stainless steel grade boasts better resistance to corrosion and oxidation compared to standard 430 grades. It has a tensile strength of around 450 MPa and good yield strength, maintaining toughness and dimensional stability even at high temperatures. The material also shows excellent magnetic properties, great formability, and good thermal conductivity, making it ideal for high-temperature and decorative applications.
| Specifications | ASTM A240, ASME SA240 |
| Standard | JIS, ASTM, AISI, GB, EN, DIN |
| Surface | 2B, BA, HL, No. 4, Mirror etc. |
| Finish | Cold rolled, Hot rolled |
| Thickness | 0.3mm–100mm |
| Size | 1000mm, 1219mm, 1250mm, 1500mm, 1524mm, 2000mm |
| Grade | Fe | Cr | Ni | Mo | Mn | Nb | Si | Ti | Ta | C | P | S |
| SS 436 | 81.3 | 16 | – | 1 | 1 | 0.5 | – | – | 0.5 | 0.12 | 0.040 | 0.030 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 77 KSI min (531 MPa min) | 53 KSI min (365 MPa min) | 40 % | Rb 89 max |
Contact us to get a quick quote for your requirement.

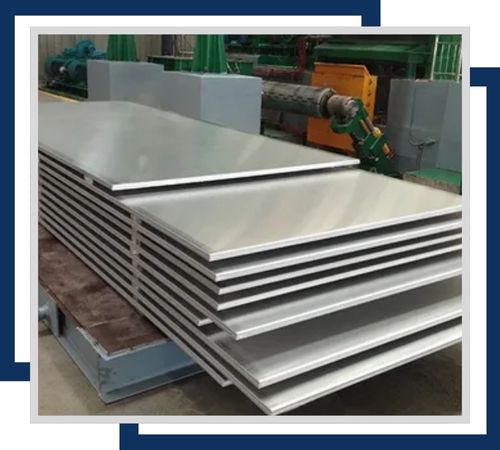

Excellent resistance to corrosion under conditions of high stress. Normally available in a form whose thickness runs from 3 mm up to 25 mm and width up to 2000 mm, this sheet is used in fabrication and construction.

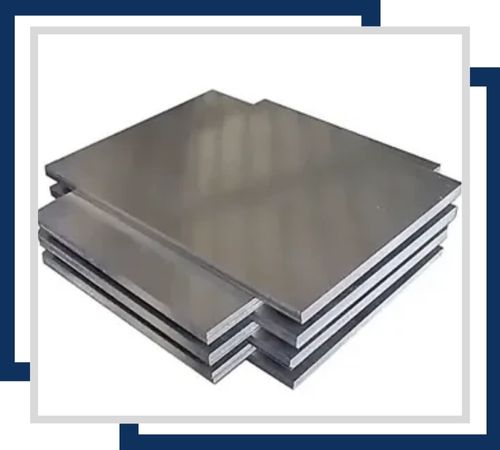

Excellent resistance to corrosion as well as an excellent surface finish. Available in thicknesses of 0.5 mm-6 mm, and widths of up to 1500mm, these plates are perfect for applications that are precise and aesthetically designed.

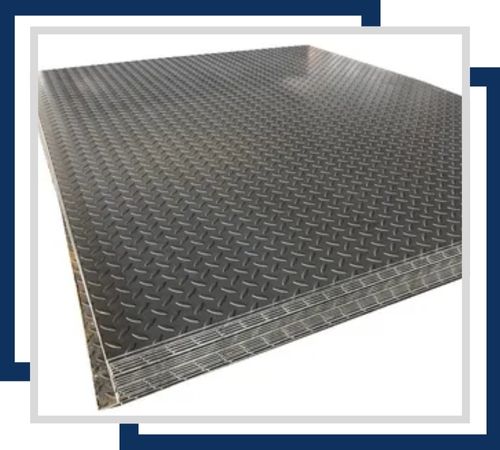

Good corrosion resistance along with an anti-slip surface. The sheets are available in 1 mm to 6 mm thickness and in standard sizes up to 2000 mm x 1000 mm. Stainless Steel 436 Chequered Sheets are often used in flooring and safety applications.

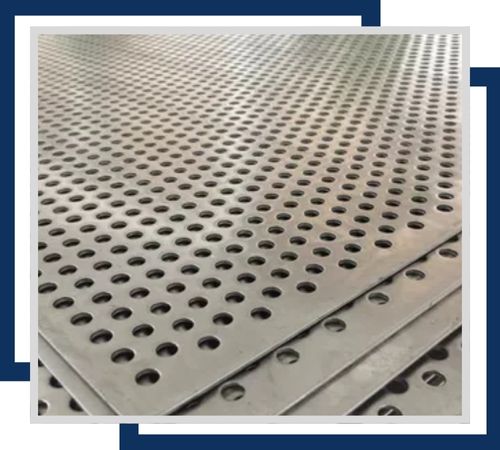

High-quality corrosion resistance is offered by stainless steel 436 perforated plates, available with custom hole patterns for effective ventilation and filtration. The product is supplied in thicknesses from 0.8 mm to 5 mm and sheet sizes up to 2000 mm x 1000 mm, and used in industrial and architectural applications.

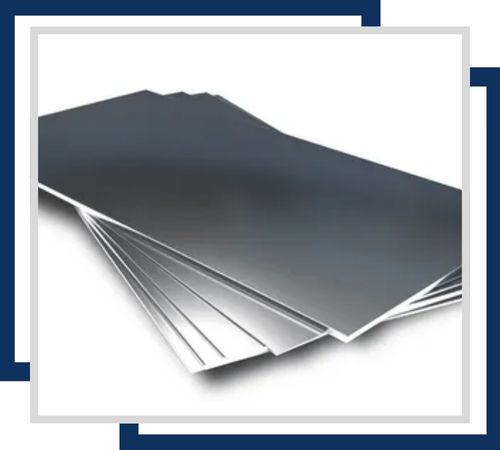

Corrosion resistance along with precise thicknesses for gap filling and alignment, are also available in usual thicknesses varying from 0.1mm to 3mm and usually up to a size of 3000 mm x 1500 mm with machinery and assembly processes.

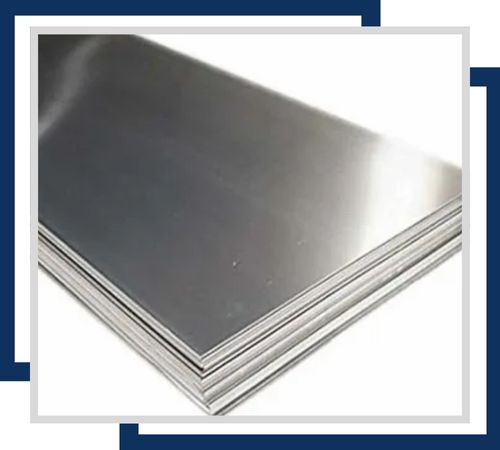

High corrosion resistance coupled with a polished finish, these Stainless Steel 436 Polished Plates are stocked in sizes up to 1500 mm x 3000 mm and can be supplied between 0.5 mm – 6mm thick. Such plates are predominantly used in decoration and architectural areas.
Stainless Steel 436 Plates and Sheets are extensively employed in various industries including automotive, construction, and chemical processing industries due to their good resistance towards oxidation and corrosion. They find broad application in the production of exhaust systems, heat exchangers, furnace components, and high-temperature equipment used in various industries that necessitate stability at high temperatures along with endurance. Besides, sheets and plates are applied in food processing, architectural uses, and as structural members in extreme environments where high strength and corrosion resistance are of utmost importance.
You’ll find Stainless Steel 436 Sheets and Plates commonly used in automotive exhaust systems, heat exchangers, and industrial furnaces because of their outstanding heat and corrosion resistance. They’re also popular in kitchen equipment, food processing machinery, and architectural panels where both looks and durability matter. Plus, these sheets and plates are great for making household appliances, flue liners, and chemical processing equipment. Their impressive oxidation resistance and cost-effectiveness make them a go-to choice for industries that need long-lasting performance in tough, high-temperature environments.
