Kyaw Stainless is a well-respected manufacturer and supplier located in Naypyidaw, Myanmar, specializing in high-quality Stainless Steel 305 Sheets and Plates. These products are celebrated for their outstanding corrosion resistance, excellent formability, and smooth surface finish, making them perfect for both industrial and decorative uses. At Kyaw Stainless, every sheet and plate is crafted to exacting standards, utilizing cutting-edge technology and rigorous quality control measures. Industries like food processing, chemicals, and marine applications favor Stainless Steel 305 Sheets and Plates due to their higher nickel content, which enhances oxidation resistance and improves workability during fabrication.
These sheets and plates typically contain around 17–19% chromium and 11–13% nickel, along with a low carbon content (no more than 0.12%), and trace amounts of manganese, silicon, and phosphorus, with the rest being iron. The increased nickel content compared to the 304 grade offers superior corrosion resistance and minimizes work hardening during forming processes. With a tensile strength of about 515 MPa and a yield strength of around 205 MPa, these materials boast excellent ductility, toughness, and weldability, making them ideal for complex fabrication and forming tasks.
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
Contact us to get a quick quote for your requirement.

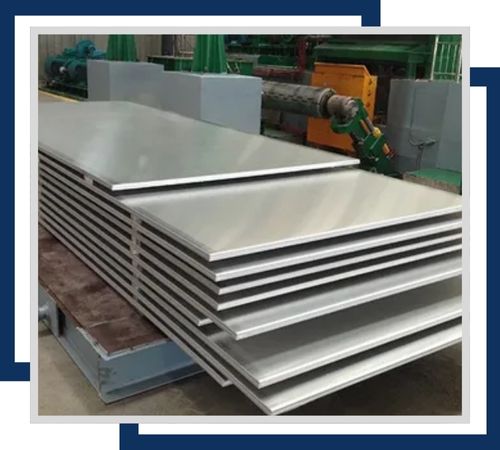

Corrosion-resistant, strong, and versatile. These sheets are usually available in various thicknesses between 1.5mm and 25mm and up to 2000mm in width. Ideally, they find applications in heavy-duty sectors and structural elements.

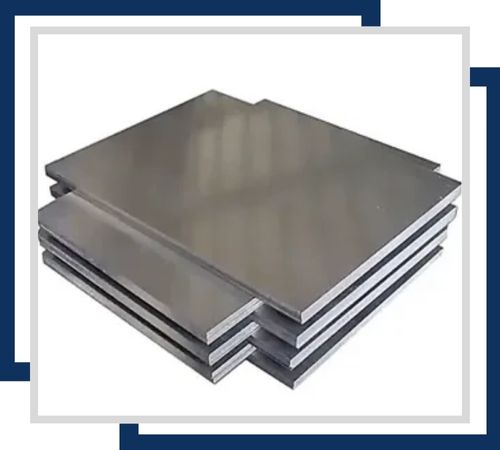

Excellent corrosion resistance and a smooth, polished surface. They are available in thicknesses from 0.3mm to 3mm and widths up to 1500mm and are widely used in automotive, kitchen, and architectural applications.

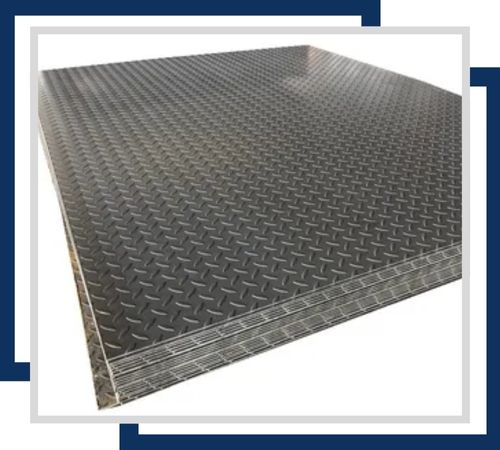

Surface patterned with slip resistance; they have a good corrosion-resistant property. It is available in 2mm to 10mm thickness and 1250mm width for use in flooring and stair treads.

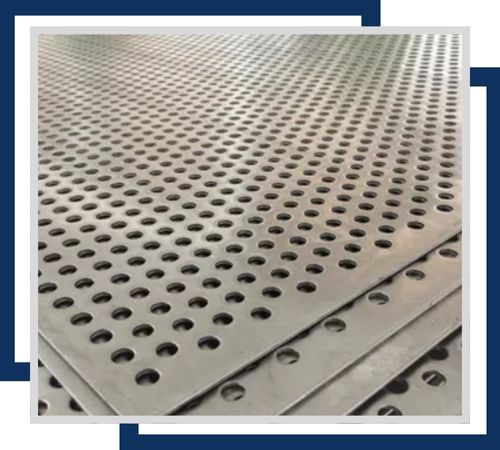

Specially designed to exhibit excellent corrosion resistance, having holes for ventilation and aesthetic purposes. They usually vary in sizes ranging from 0.5mm to 6mm thickness. The sheet may be ordered as per required dimension and hole pattern.

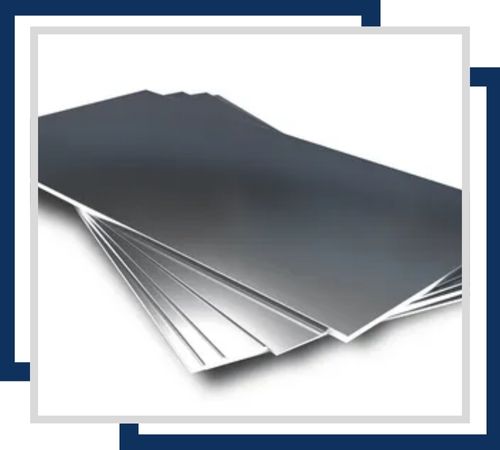

Used for precise spacing and levelling, these shim sheets provide superior corrosion resistance. These are available in thicknesses ranging from 0.1mm to 3mm and in various dimensions and are ideal for mechanical and structural applications where exact tolerances are required.

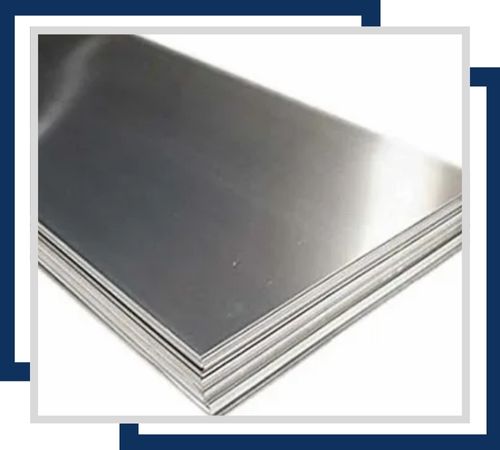

Excellent corrosion resistance and aesthetic appeal, polished plates come in thickness from 0.5mm up to 50mm and up to 2000mm width. They are mainly used for decorative and high-visibility applications where a desired high-gloss finish is achieved.
Stainless Steel 305 Plates and Sheets have universal application where great formability and corrosion resistance are needed. They are specifically used for deep drawn parts, domestic appliances, food processing plants, and building ornaments because they have high ductility and no tendency to harden. Sheets and plates find very extensive usage in marine and chemical processing operations, storage tanks, and auto trim, where the need for resisting oxidation and moisture is predominant. In addition, they occur in electrical enclosures, medical devices, aerospace parts, and industrial equipment to provide strength, ease of fabrication, and dependable performance under severe conditions.
Stainless Steel 305 Sheets and Plates find extensive use in food processing equipment, chemical tanks, marine components, architectural cladding, and kitchen appliances. Their smooth finish and resistance to oxidation make them perfect for applications that require both hygiene and aesthetic appeal. Additionally, they are utilized in automotive trim, electronic housings, and storage containers due to their strength and corrosion resistance. With their superior formability, non-magnetic properties, and long-lasting performance, Stainless Steel 305 Sheets and Plates deliver reliable durability in both industrial and commercial settings.
