Home > Sheet and Plates > Stainless Steel 440B Sheet and Plates
Kyaw Stainless is a reliable manufacturer and supplier located in Naypyidaw, Myanmar, specializing in top-quality Stainless Steel 440B Sheets and Plates that are built for outstanding performance and durability. These products are celebrated for their impressive hardness, wear resistance, and decent corrosion resistance, making them perfect for demanding industrial and mechanical applications. At Kyaw Stainless, they prioritize precision engineering and rigorous quality control throughout the manufacturing process to ensure they meet international standards. The Stainless Steel 440B Sheets and Plates from this company are well-regarded for their strength, dependability, and long-lasting service life, even in tough environments.
The composition of Stainless Steel 440B Sheets and Plates mainly includes iron, 16–18% chromium, 0.75–0.95% carbon, along with small amounts of manganese, silicon, and molybdenum. This blend results in a great mix of high hardness and corrosion resistance. After heat treatment, these sheets and plates boast a tensile strength of around 760 MPa and a yield strength of about 450 MPa. They offer excellent mechanical strength, good edge retention, and high wear resistance, making them ideal for applications that demand precision and toughness.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

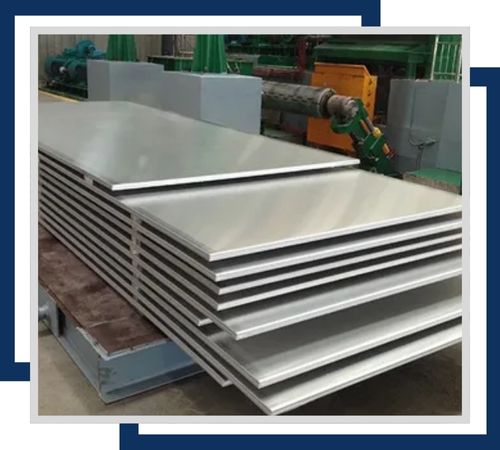

Excellent corrosion resistance provided by Stainless Steel 440B Hot Rolled Sheets ensures that it can be delivered in sizes between 3mm up to 150mm thickness, and in up to 2500mm width, for use where high strength and resistance to wear is required.

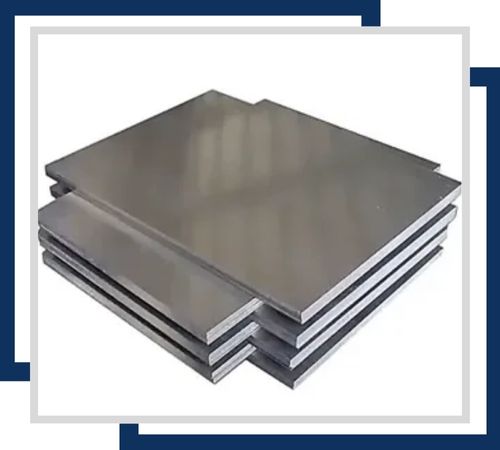

Excellent corrosion resistance and a bright finish. These plates are available in a thickness range of 0.3mm to 6mm and widths up to 2000mm, which makes them ideal for precision applications that require tight tolerances.

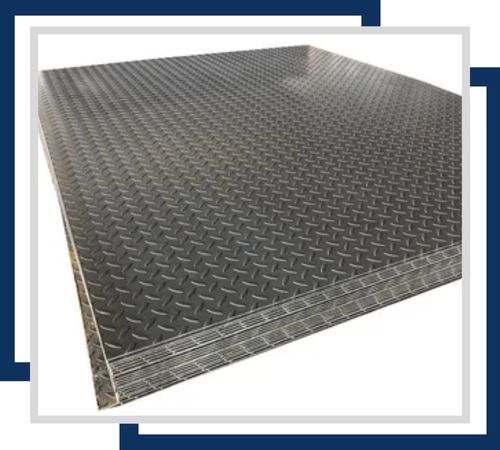

Raised patterns for improved grip, are resistant to corrosion. The thicknesses available are 1.5mm to 10mm, and the widths go up to 1500mm, which is perfect for flooring and stair treads.

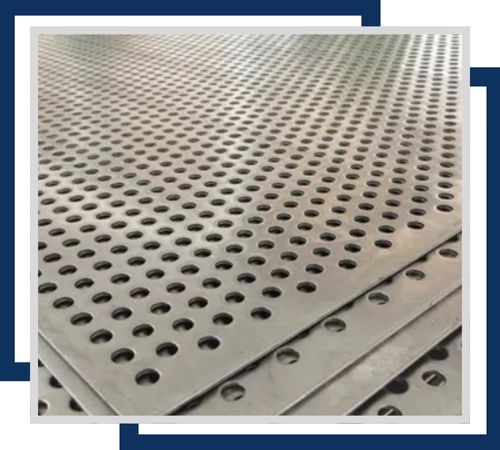

Corrosion resistance and ventilation. Generally available in a thickness range of 0.5mm to 3mm, and sheet sizes up to 2000mm x 4000mm, the perforated sheets are used for filtration, architectural, and decorative applications.

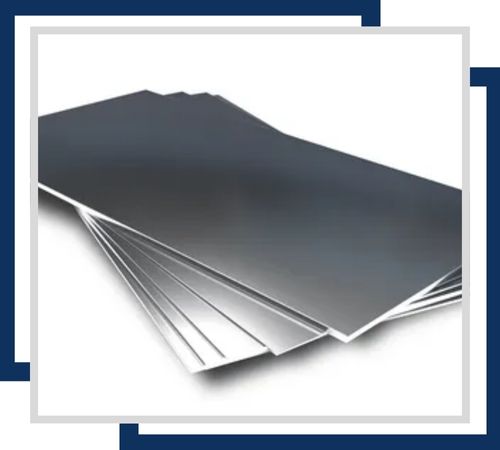

Corrosion resistant and find applications in fine adjustment of machines and tools. The sheets have a thickness ranging from 0.05mm to 3mm and come in standard sizes such as 1000mm x 2000mm.

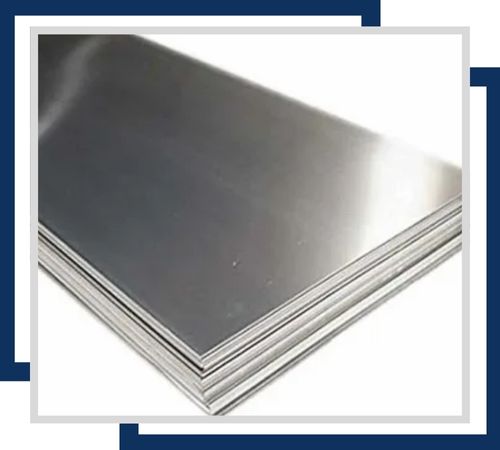

Corrosion resistance along with an excellent aesthetic appeal, and are offered in a variety of thicknesses between 1mm and 50mm and widths up to 2000mm, especially for decorative and architectural applications.
Stainless Steel 440B Plates and Sheets find broad application in the aerospace, automotive, medical, and manufacturing industries on account of their superior hardness and wear resistance. They find frequent application in making bearings, surgical equipment, high-precision machine parts, and cutting tools. Moreover, these plates and sheets are applied in naval, food processing, and heavy industrial applications where materials withstanding intense temperatures and mechanical stresses are required, providing consistent performance and durability in demanding situations.
Industries such as automotive, aerospace, and engineering frequently use Stainless Steel 440B Sheets and Plates for crafting blades, molds, dies, and tools. They’re also found in food processing equipment, valve components, and mechanical parts that face wear and friction. Thanks to their high hardness and polishability, these sheets and plates are perfect for decorative and precision applications. Additionally, they find their place in surgical instruments and industrial machinery. With Kyaw Stainless’s 440B Sheets and Plates, you can count on exceptional strength, performance, and durability for both industrial and commercial needs.
