Kyaw Stainless, a prominent manufacturer and supplier located in Naypyidaw, Myanmar, specializes in top-notch Stainless Steel 310/310S Sheets and Plates that excel in high-temperature and corrosive settings. These products are crafted using cutting-edge technology and high-quality raw materials, guaranteeing exceptional durability, a flawless surface finish, and precise dimensions. Renowned for their remarkable oxidation resistance and impressive tensile strength, Stainless Steel 310/310S Sheets and Plates find extensive use in various industries, including petrochemical, power generation, and furnace equipment. Kyaw Stainless is dedicated to providing reliable and cost-effective stainless steel solutions that adhere to global quality standards.
Stainless Steel 310/310S Sheets and Plates consist of chromium (24–26%), nickel (19–22%), carbon (≤0.25% for 310 and ≤0.08% for 310S), manganese (≤2%), and silicon (≤1.5%), along with trace amounts of phosphorus and sulfur. The high levels of chromium and nickel ensure excellent resistance to oxidation and scaling at temperatures reaching up to 1100°C. In terms of mechanical properties, they boast a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. The 310S grade, which has a lower carbon content, enhances weldability and minimizes the risk of carbide precipitation during exposure to high temperatures.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | Fe | |
|---|---|---|---|---|---|---|---|---|
| 310 | 0.25 max | 2.0 max | 1.50 max | 0.045max | 0.03max | 24-26 | min: 8.0 max: 12.0 | Balance |
| 310S | 0.08 max | 2.00 max | 1.50 max | 0.045 | 0.03 | 24-26 | 19-22 | Balance |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 310 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
| 310S | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40% | – |
Contact us to get a quick quote for your requirement.

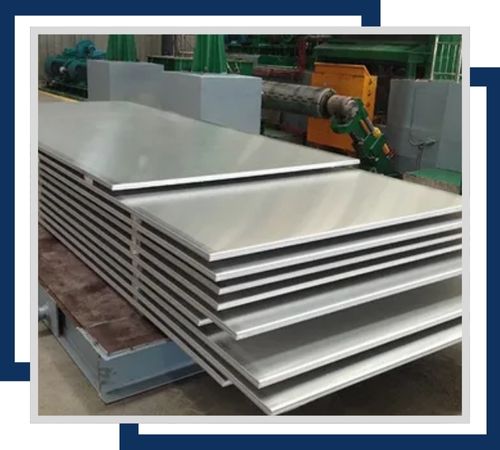

Corrosion-resistant and resistant to corrosion and have high temperature stability. Available in sizes of 1.5 mm up to 25 mm thick, dimensions vary with customer requirements and offer robust performance in high-temperature applications.

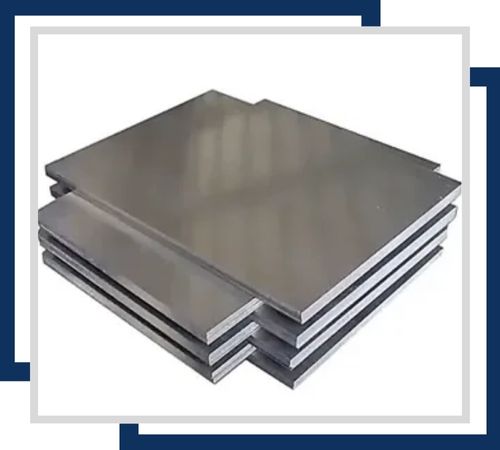

Excellent corrosion resistance and improved surface finish. Suitable for applications which require tight tolerance and smoothness of the surfaces, these have precision and strength.

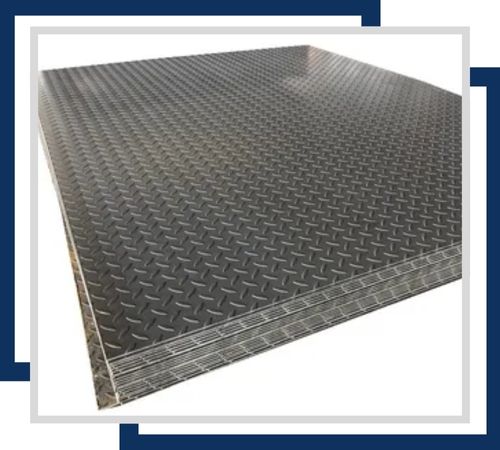

The Stainless Steel 310 chequered plates offer corrosion resistance with the added feature of slip resistance. The thickness varies from 2 mm to 12 mm. They are applied in floorings and industries for better traction.

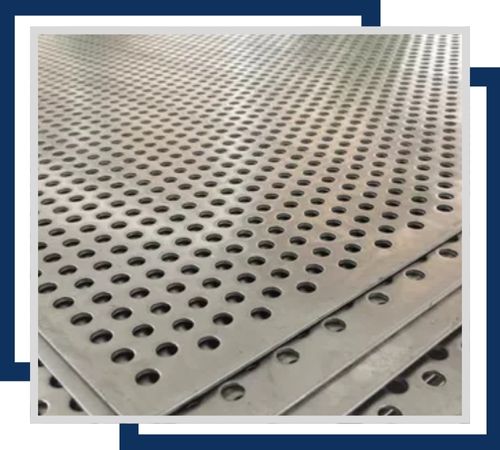

Available hole sizes and patterns that create aesthetic and practical benefits. Generally, thickness varies from 0.5 mm to 6 mm and finds application in filtration, ventilation, and decoration purposes.

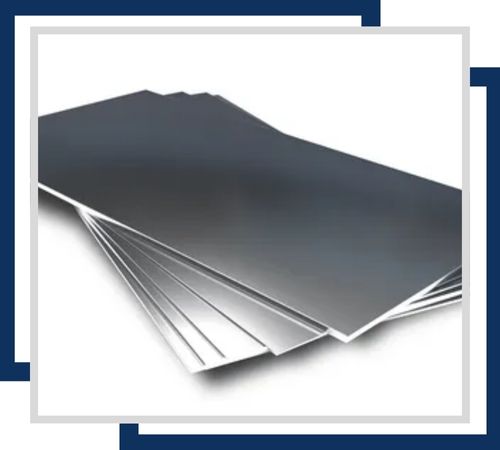

Available in thickness ranging from 0.1 mm to 1 mm. The thin sheets produce exact gaps or spaces in mechanical assemblies for adjustment.

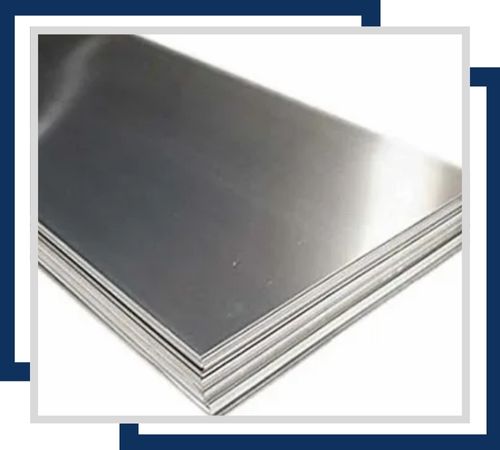

Corrosion resistance with high-quality finishes, both aesthetic and functional. They are available in 0.5 mm to 50 mm thickness and extensively used for decorative and high-end industrial applications.
Stainless Steel 310/310S Sheet and Plates are widely used in high-temperature and corrosion-resistant applications. They are essential in petrochemical plants, power generation facilities, and refineries, where they withstand extreme heat and oxidation. In the aerospace and automotive industries, they are used in exhaust systems, engine components, and heat exchangers. These sheets and plates are also crucial in furnace construction, industrial boilers, and thermal processing units. Their superior oxidation resistance makes them ideal for chemical processing, offshore oil and gas applications, food processing equipment, and high-temperature fabrication in various industrial sectors.
Stainless Steel 310/310S Sheets and Plates are perfect for applications that require outstanding heat and corrosion resistance. They are frequently utilized in furnaces, kilns, heat exchangers, boilers, and incinerators due to their superior performance at elevated temperatures. These sheets and plates are also widely used in sectors such as chemical processing, petrochemical, refineries, cement production, and thermal power plants. Their unique combination of high strength, oxidation resistance, and structural stability makes them ideal for manufacturing combustion chambers, radiant tubes, and other critical components.
