Kyaw Stainless is a reliable manufacturer and supplier located in Naypyidaw, Myanmar, specializing in high-quality Stainless Steel 347/347H Sheets and Plates tailored to meet a variety of industrial needs. Known for our precision engineering and exceptional durability, our products are built to withstand even the toughest conditions. We utilize cutting-edge manufacturing techniques and top-notch raw materials to guarantee outstanding corrosion resistance, high-temperature stability, and lasting strength. With a strong focus on quality and customer satisfaction, Kyaw Stainless provides dependable stainless steel solutions for industries such as chemical processing, petrochemical, power generation, and beyond.
Stainless Steel 347/347H Sheets and Plates are stabilized austenitic stainless steels that include chromium, nickel, and columbium (niobium), with an extra boost of carbon in 347H for improved high-temperature strength. Typically, their composition features 17–19% chromium and 9–13% nickel, which ensures remarkable resistance to intergranular corrosion and oxidation. On the mechanical side, these sheets and plates boast high tensile strength, excellent creep resistance, and good toughness, even when the heat is on. The addition of niobium enhances stability, preventing carbide precipitation and keeping structural integrity intact under thermal stress.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

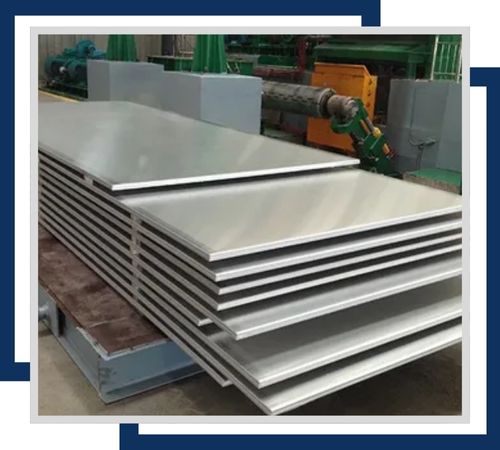

Excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

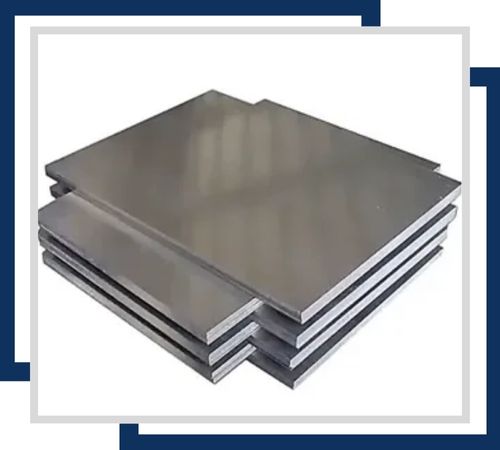

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

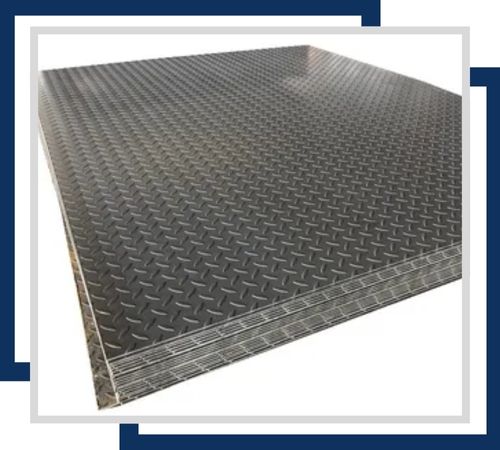

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

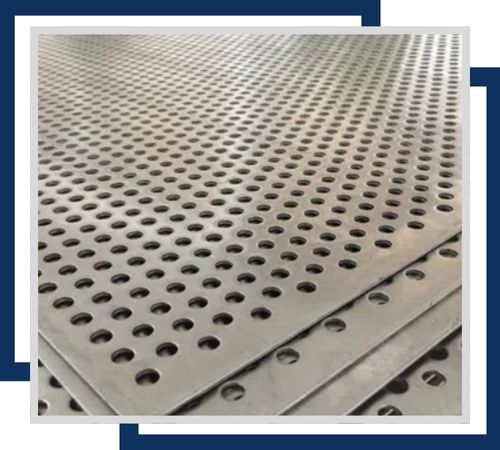

High corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

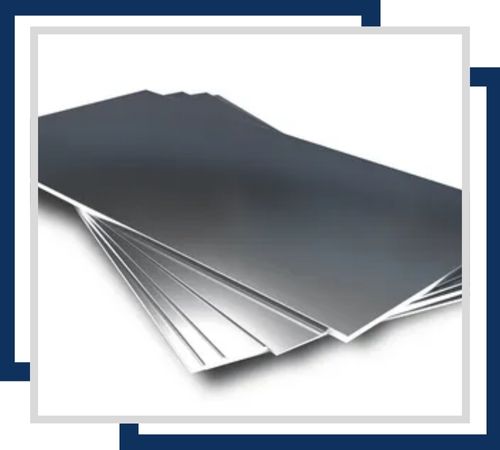

Excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

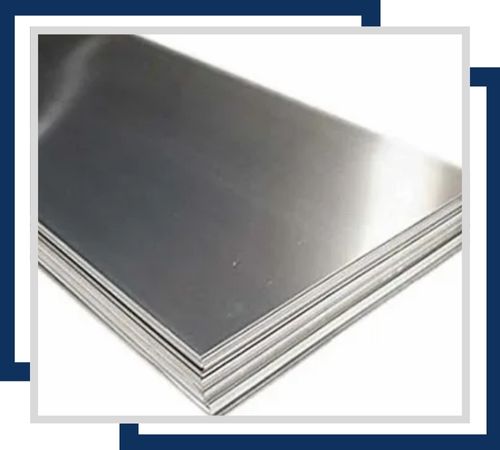

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Stainless Steel 347/347H Sheets and Plates are used extensively in petrochemical, power generation, oil & gas, and aerospace industries because of their superior high-temperature strength and corrosion resistance. They are used extensively in furnace parts, heat exchangers, boiler tubes, pressure vessels, and chemical processing equipment. They are also used in food processing, pharmaceutical, and marine industries where there is a need for better mechanical properties and corrosion resistance in aggressive environments. They are stable at extreme conditions and hence are used in demanding industrial applications.
These Stainless Steel 347/347H Sheets and Plates are commonly found in high-temperature and corrosive settings like heat exchangers, boilers, chemical processing equipment, and exhaust manifolds. They shine in applications that demand superior resistance to sensitization and intergranular corrosion, making them perfect for industries such as petrochemical, power generation, and oil and gas. Additionally, these sheets and plates are utilized in food processing, aerospace, and marine environments where durability, thermal stability, and corrosion resistance are essential for long-lasting performance and operational efficiency.
